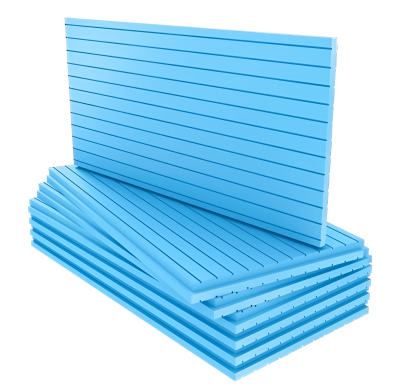

Penoplex “Wall” corrugated 30*585*1185mm (9.0119 sq.m)
- category: XPS insulation
- Brands: PENOPLEX
"Penoplex “Stena” ®" is a high-performance thermal insulation material of thelatest generation. Penoplex" boa... See more
"Penoplex “Stena” ®" is a high-performance thermal insulation material of the
latest generation. Penoplex" boards are made of general purpose polystyrene
by extrusion. Compared to other materials "Penoplex" is characterised by zero
water absorption, high durability, environmental friendliness and low thermal
conductivity.
See less
- Stably low thermal conductivity;
- Zero water absorption (uniform structure of sealed cells);
- High compressive and bending strength
- Absolute biostability
- Long-term stability;
- Environmental friendliness;
- Norms / Standards: TU 5767-006-54349294-2014 Modifications: 1-6 Control
and evaluation of products are carried out by accredited laboratories.
- Surface: rough
- Colour: orange
- Information about packing: For packing of Foamflax sheets polyethylene
shrink film stabilised to ultraviolet radiation is used.
The Name
Testing Methodology
Unit of Measurement
Tile Indicators
Compressive strength at 10% linear deformation, not less than GOST EN
826-2011 MPa 0,15 (1,5; 15)
Water absorption for 24 hours, not more than GOST 15588-86 % by volume
0,5
Fire resistance class F3-123 group G4
Calculated coefficient of thermal conductivity in operating conditions "B" "PiN
50.13330.2012 W/(m-°K) 0,034
Sound insulation of partitions (GKL - Penoplex® 50 mm - GKL), Rw (weighted
average sound reduction coefficient), dB GOST 27296-87 dB 41
Index of improvement of structural noise insulation in floor constructions
GOST 16297-80 dB 23
Coefficient of vapour permeability mg/(m.h.Pa) 0,005
Density kg/m3 from 20
Modulus of elasticity MPa 15
Specific heat capacity kJ/(kg.0C) 1.45
Bending strength MPa 0.25
Standard dimensions Width mm 585
Length mm 1185
Thickness mm 50
Operating temperature range TU °С -70 ... +75
Tile thickness (mm) Tile width (mm) Tile length (mm) Number of tiles in pack(pcs.) Volume (m³)
30 585 1185 13 0,2704
50 585 1185 7
"Penoplex Stena®" is used for insulation of external and internal structures
(walls, partitions and facade systems). The milled surface of "Penoplex"
boards improves adhesion of plaster and adhesive compositions to the
surface of the treated material and reduces the time of plastering works.
